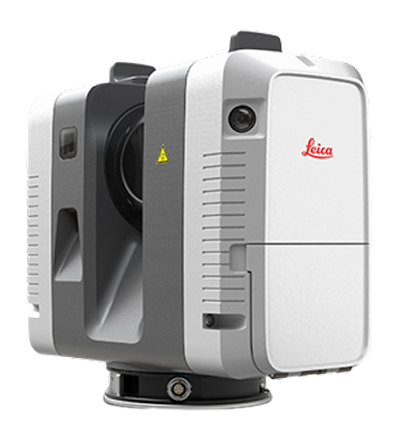

Experience efficient 3D reality capture with the Leica RTC360 LT—designed to make high-performance laser scanning more accessible and economical to Indian customers.

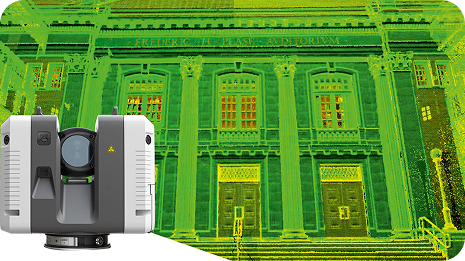

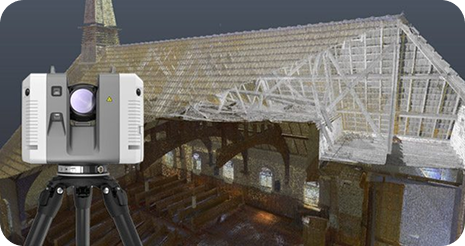

Fast, Vivid 3D Scanning in Minutes – With the ability to capture up to 1 million points per second and equipped with an advanced HDR imaging system, this agile solution delivers vivid, colourised 3D point clouds in less than two minutes.

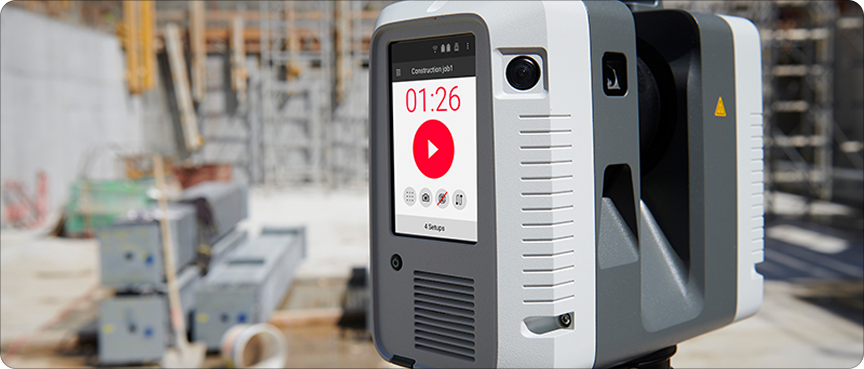

Portable Design for On-the-Go Professionals – Built for mobility and ease of use, the RTC360 LT features a lightweight, backpack-friendly design and a collapsible tripod, making it ideal for on-the-go professionals. Its one-button operation ensures quick setup and minimal training—perfect for fast-paced fieldwork.

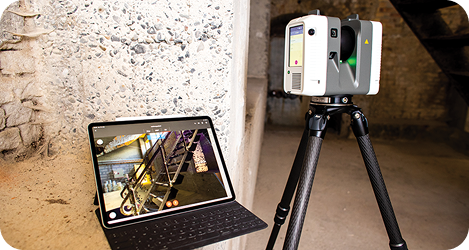

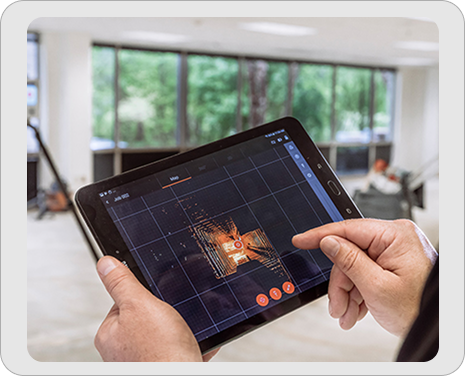

Precision Scanning with Real-Time Verification – Achieve high-quality, low-noise data that brings every detail to life. When paired with Cyclone FIELD 360, users benefit from semi-automated, targetless registration and can verify scan quality in real time—saving hours of manual effort and increasing productivity from site to office.

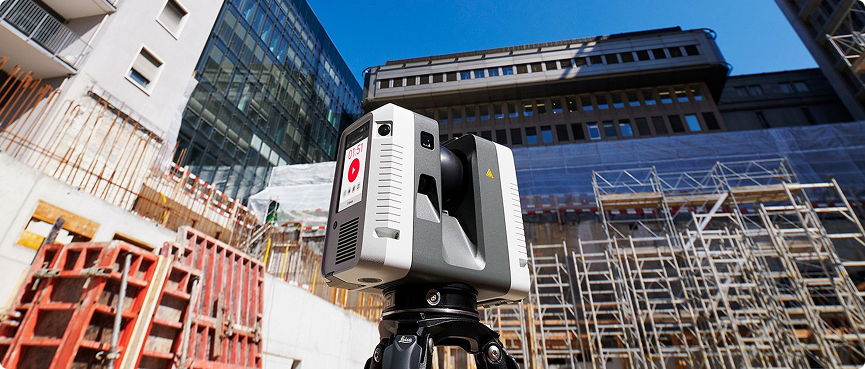

From construction zones to industrial facilities and complex infrastructure projects, the RTC360 is built to perform reliably—even in the challenging environments often encountered across India.
| Data Acquisition | < 3 mins for complete full dome scan and spherical HDR image at 6mm @ 10 m resolution |
|---|---|
| Double Scan | Automatic removal of moving objects |
| Check & Adjust | Field procedure for targetless checking of angular parameters |
| Distance measurement system | High-speed, high dynamic time of flight enhanced by Waveform Digitising (WFD) technology |
|---|---|
| Laser class | 1 (in accordance with IEC 60825-1:2014), 1550 nm (invisible) |
| Field-of-view | 360° (horizontal) / 300° (vertical) |
| Range | Min. 0.5 - up to 130 m |
| Speed | Up to 1,000,000 pts/sec |
| Resolution | 3 user selectable settings (3/6/12 mm @ 10 m) |
| Accuracy | Angular accuracy 18 Range accuracy 1.0 mm + 10 ppm 3D point accuracy 1.9 mm @ 10 m 2.9 mm @ 20 m 5.3 mm @ 40 m |
| Range Noise | 0.4 mm @ 10 m, 0.5 mm @ 20 m |
| Housing | Aluminium frame and sidecovers |
|---|---|
| Dimensions | 120 mm x 240 mm x 230 mm / 4.7" x 9.4" x 9.1" |
| Weight | 5.2 kg/11.5 lbs, nominal (without batteries) |
| Mounting mechanism | Quick mounting on 5/8" stub on lightweight tripod/ optional tribrach adapter/survey tribrach adapter available |
| Internal Battery | 2 x Leica GEB361 internal, rechargeable Li-Ion batteries Duration: Typically up to 4 hours Weight: 340 g per battery |
|---|---|
| External | Leica GEV282 AC adapter |
| Operating temperature | -5° to +40°C |
|---|---|
| Storage temperature | -40° to +70°C |
| Operating low Temperatures | -10° to +40°C |
| Dust/Humidity | Solid particle/liquid ingress protection IP54 (IEC 60529) |

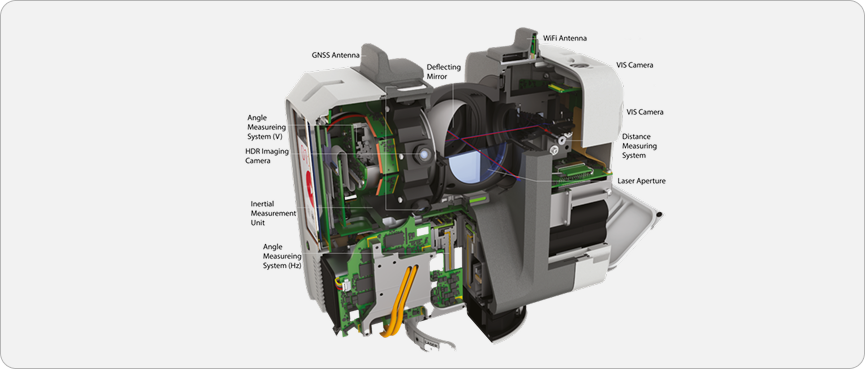

Discover how the RTC360 LT’s cutting-edge capabilities are built to improve accuracy, streamline workflows, and support real-time collaboration for field professionals.
Crafted for professionals who work on the go, the RTC360 LT offers a compact, easy-to-use design that accelerates your scanning process—helping you capture more in less time.

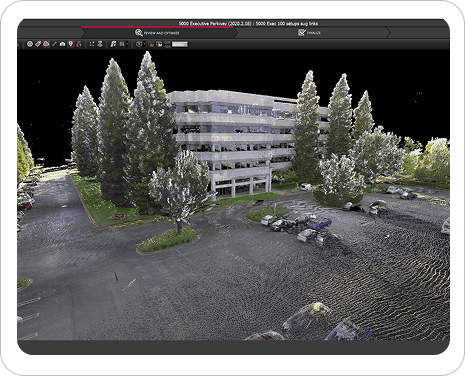

Generate detailed 3D scans and vivid HDR imagery in under two minutes, maintaining high precision without interrupting your workflow.
The RTC360 LT streamlines your tasks with automated visual scan alignment—reducing manual work and boosting field efficiency.
Add meaningful context to your scans using custom tags that support better communication, clearer documentation, and improved project coordination.

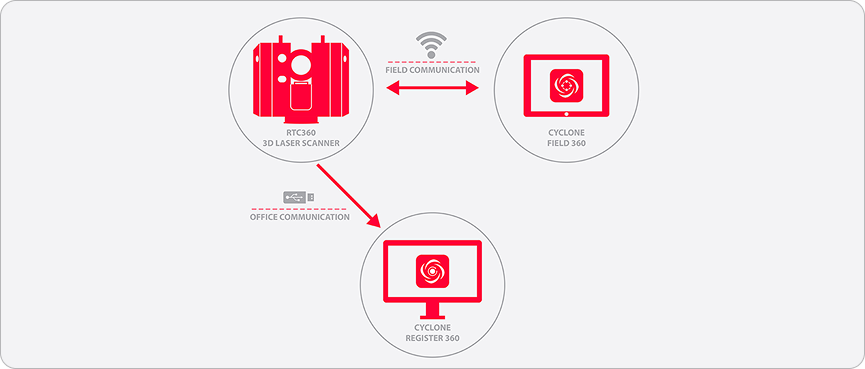

Seamlessly transfer data from Cyclone FIELD 360 to Reality Cloud Studio (powered by HxDR), enabling real-time sharing, remote access, and team-wide collaboration from anywhere.

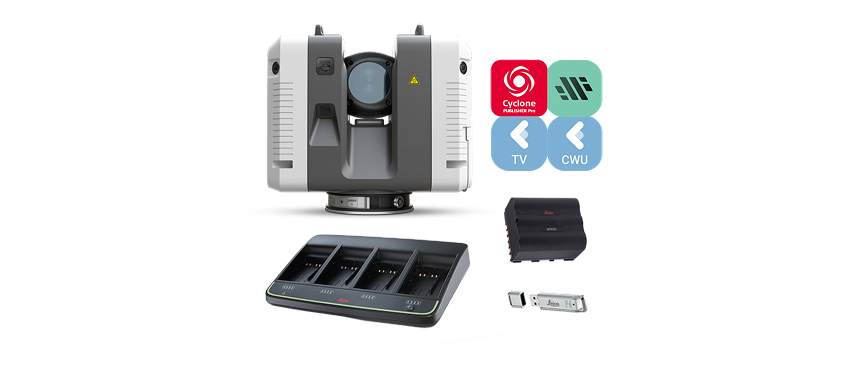

The Leica RTC360 LT combines advanced scanning hardware with intelligent software to offer a seamless and efficient reality capture solution. Included in the package:
Captures high-speed 3D point clouds and vivid HDR imagery with precision
Mobile-friendly tool for real-time registration and field data processing
Desktop software that simplifies and accelerates 3D data management and alignment
This integrated setup empowers professionals to capture, register, and organize spatial data effortlessly—making the RTC360 LT a complete, end-to-end solution for modern 3D documentation.

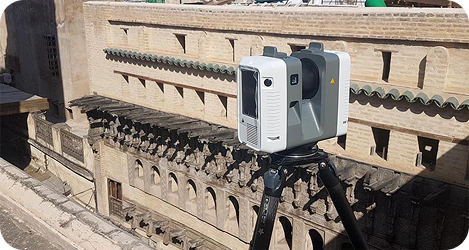

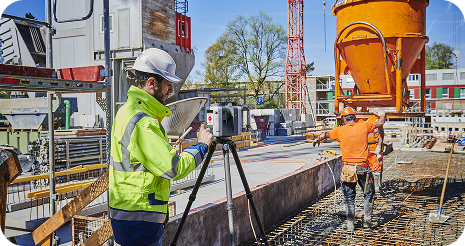

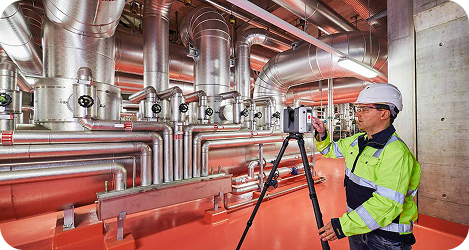

Explore real-world applications across Indian industries where the Leica RTC360 LT empowers faster, more accurate 3D data capture—boosting productivity, improving precision, and enabling smarter project decisions. Here are some of the key field use cases:
